Brand Name: JMC
Model Number: European Type
Material: Carbon Steel
Size: M6-M48
Surface Treatment: E. Galv, H.D. Galv.
Technology: Forged
Application: Secturity
Packing: in carton or gunny bag, then on steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

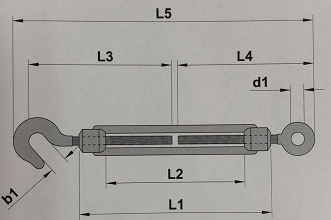

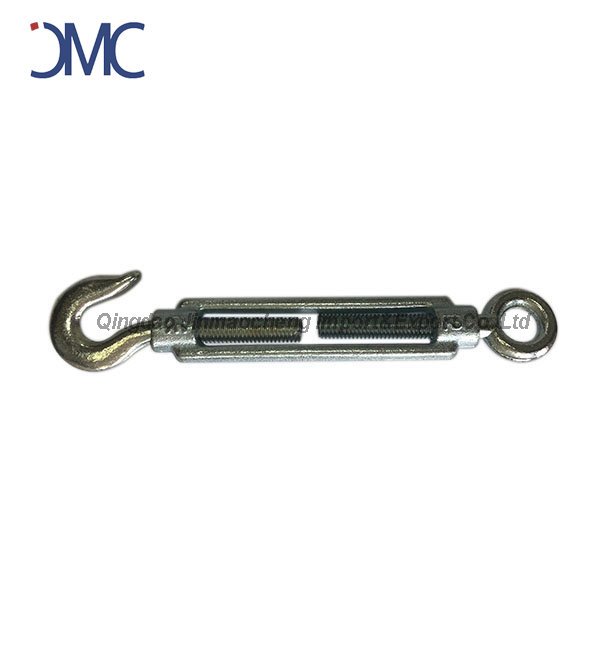

| DIN 1480 Turnbuckle Hook And Eye | ||||||||
| SIZE | WEIGHT PER 100 | DIMENSIONS(MM) | ||||||
| (MM) | (LBS.) | L1 | L2 | L3 | b1 | L4 | d1 | L5 |
| M6 | 21.0 | 110 | 80 | 85 | 8.5 | 80 | 9 | 172 |
| M8 | 36.4 | 110 | 75 | 85 | 11 | 84 | 10 | 182 |
| M10 | 64.0 | 125 | 85 | 112 | 13.5 | 105 | 14 | 213 |
| M12 | 94.9 | 125 | 80 | 117 | 15.5 | 115 | 16 | 238 |
| M14 | 136.8 | 140 | 90 | 122 | 18.5 | 122 | 18 | 263 |
| M16 | 203.0 | 170 | 110 | 138 | 19 | 165 | 22 | 320 |
| M20 | 359.7 | 200 | 130 | 170 | 20.5 | 167 | 24 | 367 |
| M22 | 485.4 | 220 | 145 | 185 | 26 | 167 | 27 | 398 |
| M24 | 662.0 | 255 | 170 | 205 | 26 | 205 | 27 | 447 |
| M30 | 1015.0 | 255 | 160 | 225 | 33 | 255 | 31 | 512 |
| M36 | 1694.6 | 295 | 180 | 255 | 44 | 276 | 43 | 568 |
| M42 | 2846.4 | 330 | 200 | 340 | 48 | 260 | 49 | 683 |
| M48 | 4633.7 | 355 | 195 | 360 | 58 | 300 | 58 | 755 |
