Brand Name: JMC
Material: Carbon Steel
Size: 1kg-100kgs
Finish: Galvanized
Packing: Steel pallet
Certificate: ABS, DNV, BV
Place of Origin: Shadong, China(Mainland)
Business Type: Manufacturer, Trading Company

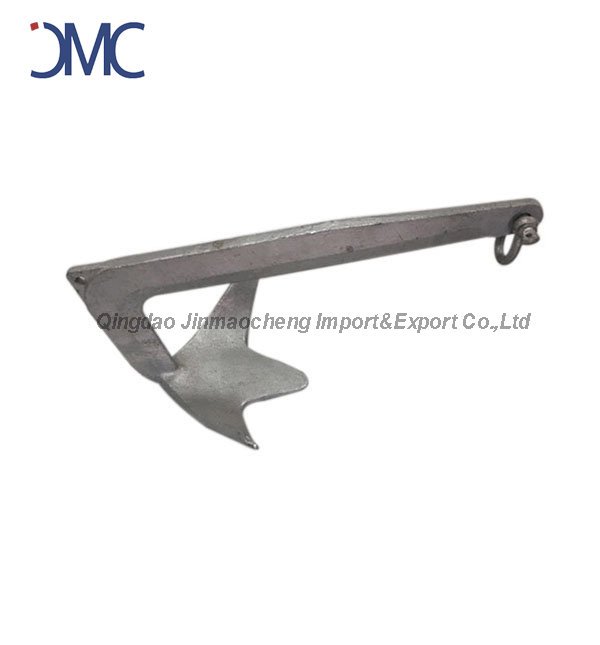

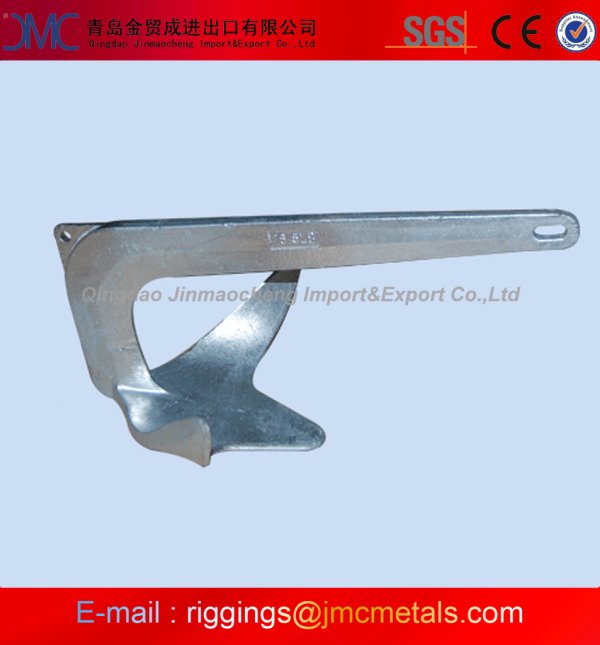

| Hot Dipped Galv. Bruce Anchor | ||||||

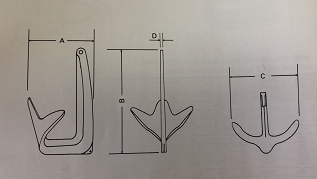

| WEIGHTS | DAPTH | LENGTH | WIDTH | SHACKLE JAW | ||
| A | B | C | D | |||
| (KG) | (LBS.) | (MM) | (MM) | (MM) | (MM) | |
| 1.0 | 2.2 | 148 | 296 | 199 | 5.9 | |
| 2.0 | 4.4 | 183 | 362 | 246 | 7.8 | |
| 5.0 | 11.0 | 240 | 469 | 315 | 10.8 | |
| 7.5 | 16.5 | 273 | 531 | 361 | 11.0 | |
| 10.0 | 22.0 | 292 | 583 | 385 | 12.0 | |
| 15.0 | 33.0 | 342 | 655 | 433 | 13.4 | |
| 20.0 | 44.0 | 372 | 701 | 458 | 18.6 | |
| 30.0 | 66.0 | 415 | 790 | 520 | 18.6 | |
| 50.0 | 110.0 | 510 | 948 | 598 | 22.0 | |
| 75.0 | 165.0 | 564 | 1112 | 726 | 29.5 | |
