Brand Name: JMC
Material: Carbon Steel
Size: 50kgs-5000kgs
Surface Treatment: Color Painted
Technology: Casting
Application: Marine Equipment
Packing: Steel pallet
Place of Origin: Shandong, China(Mainland)
Business Type: Manufacturer, Trading Company

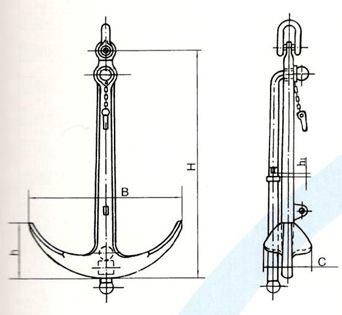

| Admiralty Anchor | |||||
| Nominal Weight | Dimensions(mm) | ||||
| H | h | h1 | B | C | |
| kg | mm | mm | mm | mm | mm |
| 50 | 960 | 230 | 42 | 635 | 185 |
| 75 | 1105 | 266 | 45 | 710 | 210 |
| 100 | 1215 | 293 | 49 | 780 | 230 |
| 125 | 1310 | 316 | 52 | 840 | 245 |
| 150 | 1395 | 336 | 55 | 900 | 265 |
| 200 | 1535 | 370 | 61 | 990 | 290 |
| 250 | 1650 | 398 | 65 | 1065 | 310 |
| 300 | 1755 | 423 | 70 | 1105 | 330 |
| 400 | 1930 | 465 | 77 | 1240 | 365 |
| 500 | 2080 | 502 | 84 | 1335 | 390 |
| 600 | 2210 | 533 | 89 | 1440 | 415 |
| 700 | 2330 | 560 | 93 | 1500 | 440 |
| 800 | 2435 | 587 | 97 | 1570 | 460 |
| 900 | 2530 | 610 | 101 | 1630 | 475 |
| 1000 | 2620 | 633 | 104 | 1685 | 495 |
| 1250 | 2825 | 680 | 112 | 1810 | 535 |
| 1500 | 3000 | 725 | 118 | 1955 | 565 |
| 2000 | 3300 | 797 | 131 | 2140 | 625 |
| 2500 | 3550 | 857 | 138 | 2270 | 672 |
| 3000 | 3780 | 912 | 150 | 2415 | 715 |
| 3500 | 3980 | 960 | 158 | 2540 | 750 |
| 4000 | 4160 | 1000 | 155 | 2650 | 785 |
| 5000 | 4480 | 1100 | 184 | 3000 | 800 |
