INSTALL WIRE ROPE CLIPS IN ACCORDANCE WITH MANUFACTURER’S RECOMMENDATION.

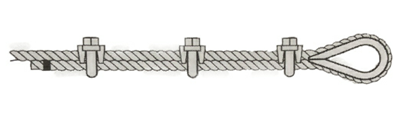

THE SADDLE OF THE CLIP WILL BE APPLIED TO THE LIVE ROPE AND THE U-BOLT TO THE DEAD END SEGMENT.

WIRE ROPE CLIP NUTS WILL BE TIGHTENED AFTER INITIAL USE OF THE WIRE ROPE AND PERIODICALLY CHECKED.


BASIC REQUIREMENTS FOR PROPER TERMINATION:

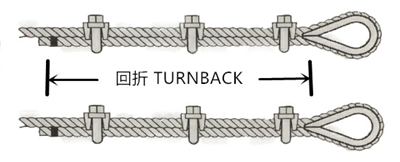

SELECT PROPER SIZE CLIPS AND TURNBACK.

PLACE CLIPS ON IN PROPER SEQUENCE.

TORQUE ALL CLIPS EBENLY.

APPLY FIRST LOAD AND RETORQUE.


APPLICATION POF WIRE ROPE CLIPS:

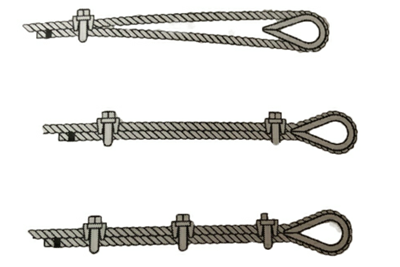

APPLY FIRST CLIP ONE BASE WIDTH FROM DEAD END.

APPLY SECOND CLIP AS NEAR THIMBLE AS POSSIBLE.

APPLY ALL ADDITIONAL CLIPS EVENLY BETWEEN THE FIRST TWO.
